Eave Vents
The overhang that cools the attic is also the one embers reach first.
Eave vents feed outside air into the attic space beneath the roof. That circulation matters most in the evening, when heat stored in the attic insulation all day needs somewhere to go — moving it out quickly is what keeps cooling costs down.
The eave — the underside of the roof that overhangs the exterior wall — usually sits directly above landscaping, shrubs, and other combustible material. That overhang, paired with an open vent, is exactly where wind-blown embers tend to collect during a wildfire.
Roofline Protection
Built to Resist Ignition at the Roofline

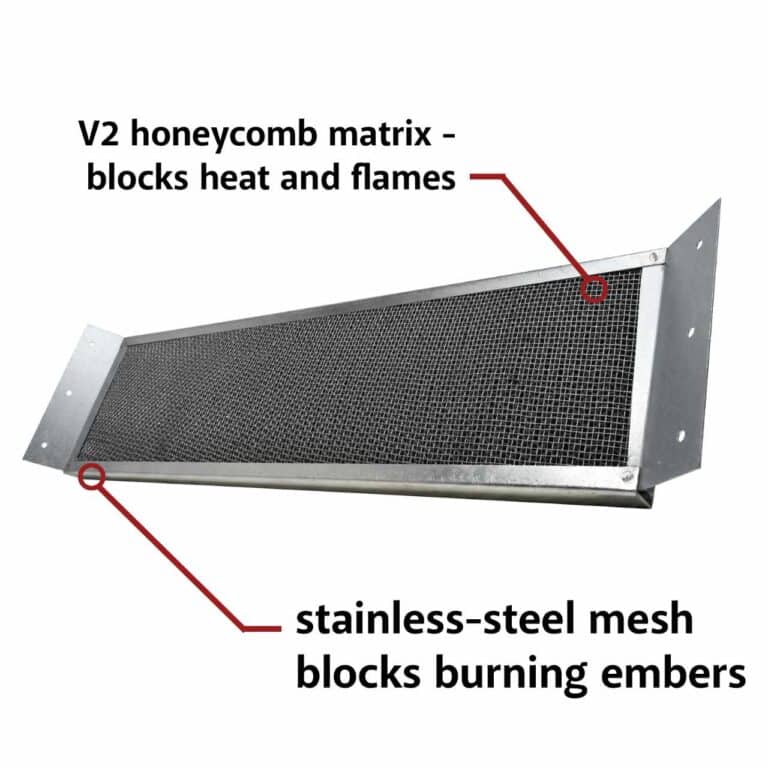

V2 Vents’ eave vents are noncombustible and corrosion-resistant, with an ember-catching wire mesh screen and an intumescent coating that self-closes at high temperature when wildfire is nearby.

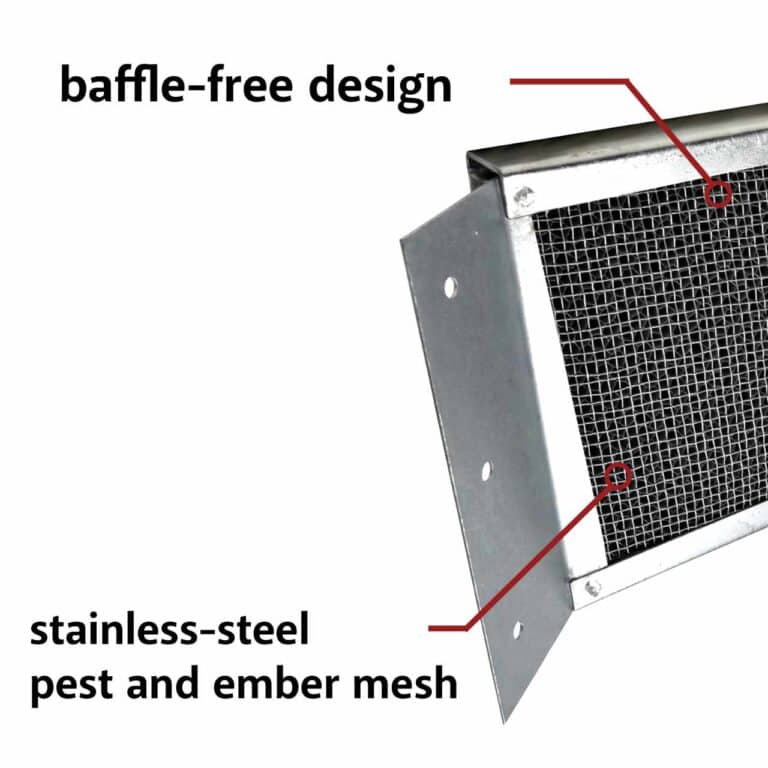

Skipping airflow-restricting baffles also means more net free area per square inch of vent.
Quality Manufacturing
What’s Built Into Every V2 Vent
V2 Matrix Intumescent Technology
Reacts at critical temperatures to defense against heat and flames
Exceptional Airflow
Our Net-Free-Vent-Area (NFVA) specifications are verified by accredited 3rd parties for airflow performance you can trust!
Code-Aware Design
Built to align with Wildland Urban Interface code in California’s Chapter 5 (Chapter 7A) -> CWUI and beyond -> IWUI etc.
Independently Tested
Evaluated to ASTM E2886 and ASTM2912 for resistance to ember entry and direct flame impingement in both, horizontal and vertical directions.
Open Rafter Eave Vent Diagrams

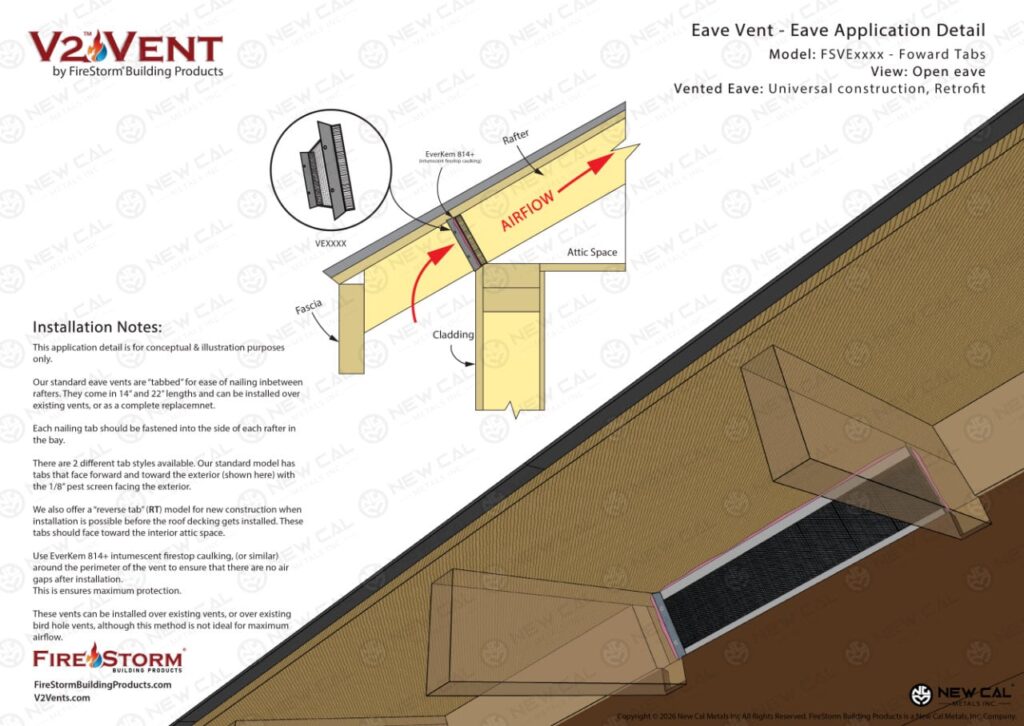

Forward Tabbed Eave Vent

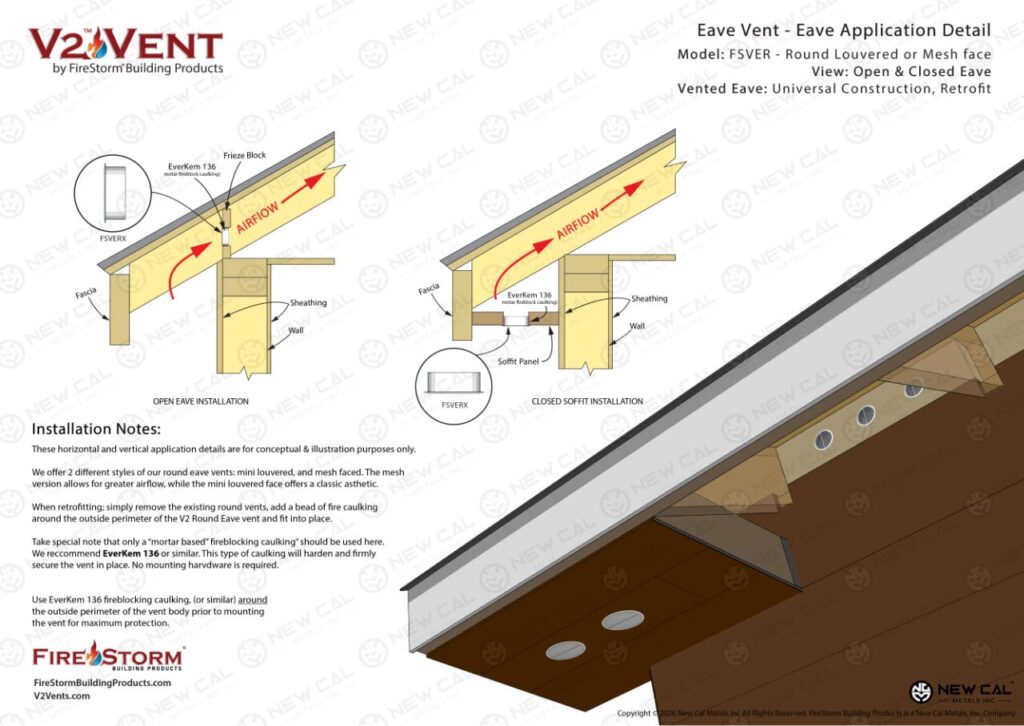

Round Eave Vent

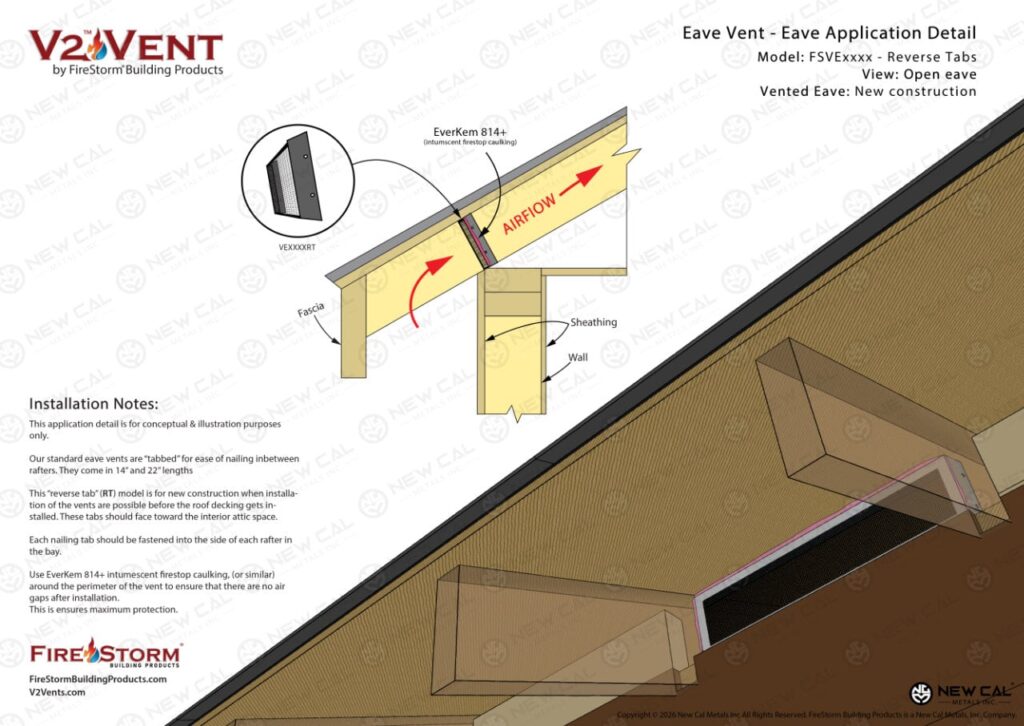

Reverse Tabbed Eave Vent
* These diagrams are conceptual, not installation instructions — consult a licensed building professional for project-specific guidance.
Critical Step
Sealing the Install with EverKem
- Use EverKem 814+ intumescent fire caulking on every V2 Vents installation. Round eave vents use EverKem 136 mortar-based caulking instead, where mounting hardware isn’t practical and flanges run minimal.
- Installation: Run a bead of EverKem behind the nailing flange before setting the vent — this keeps the seam between vent and building material airtight, closing off any gap embers could use to get in.
Close Off the Eave’s Biggest Weak Point
Have a question about V2 Vents, wildfire-resistant construction, retrofit work, custom sizes, or a code-aware project? Get in touch and take the next step towards wildfire safety today.
Flange Types & Kits
Protection built for both framing types.
V2 Vents makes ember-resistant venting for both truss and rafter framing:

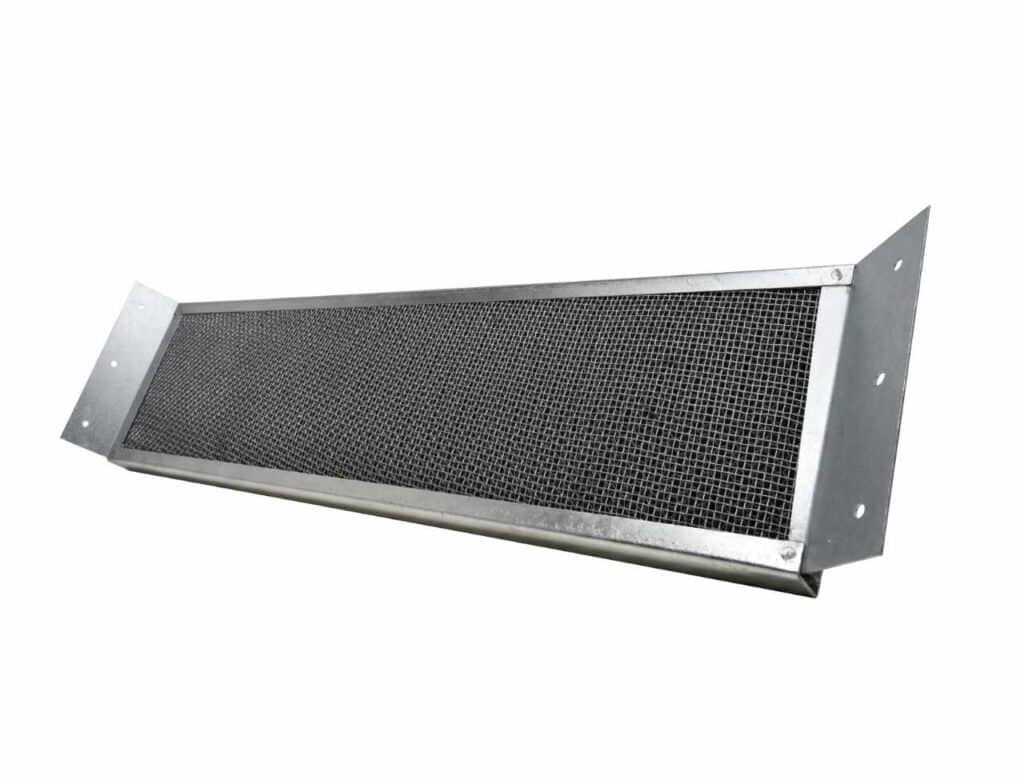

- Tabbed (winged) eave vents for trusses and rafters
- Reverse-tabbed eave vents for new construction

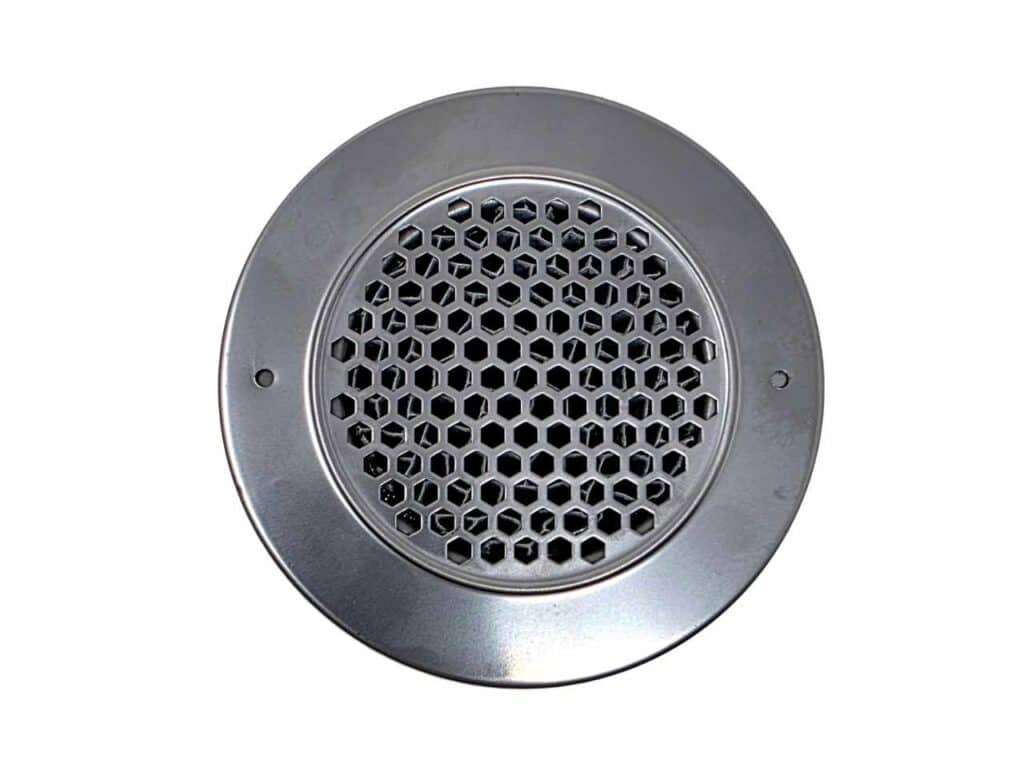

- Round eave vents (bird-hole style), mini-louvered version
- Round eave vents (bird-hole style), mesh-face version
Available for new construction and as retrofit kits over existing openings.
Eave V2 Vents Spec Table
Give the Eave a Vent That Closes When It Counts
* Within 5 miles of the coast, copper, stainless steel, or a powder-coated finish holds up better than standard galvanized against salt air. *
Eave V2 Vents
| MFG. PART # | DESCRIPTION | Flange Style | NFVA (sq. in.) | Cut Out (in.) | SPEC SHEET |
|---|---|---|---|---|---|

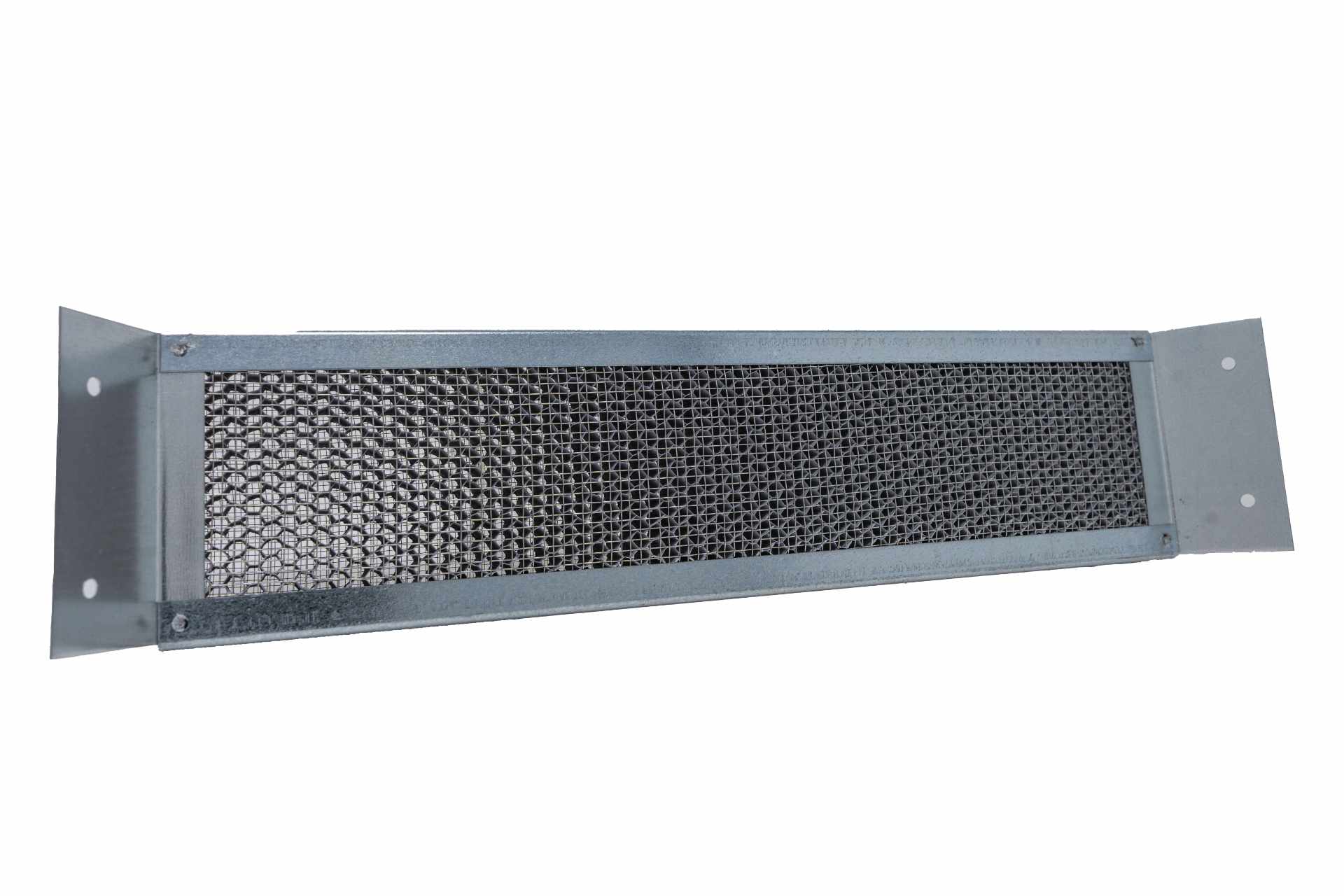

| FSVE3514 | 3.5" x 14" TABBED EAVE VENT | Standard | 24 | 2x4 Rafters - 16" OC |
 |

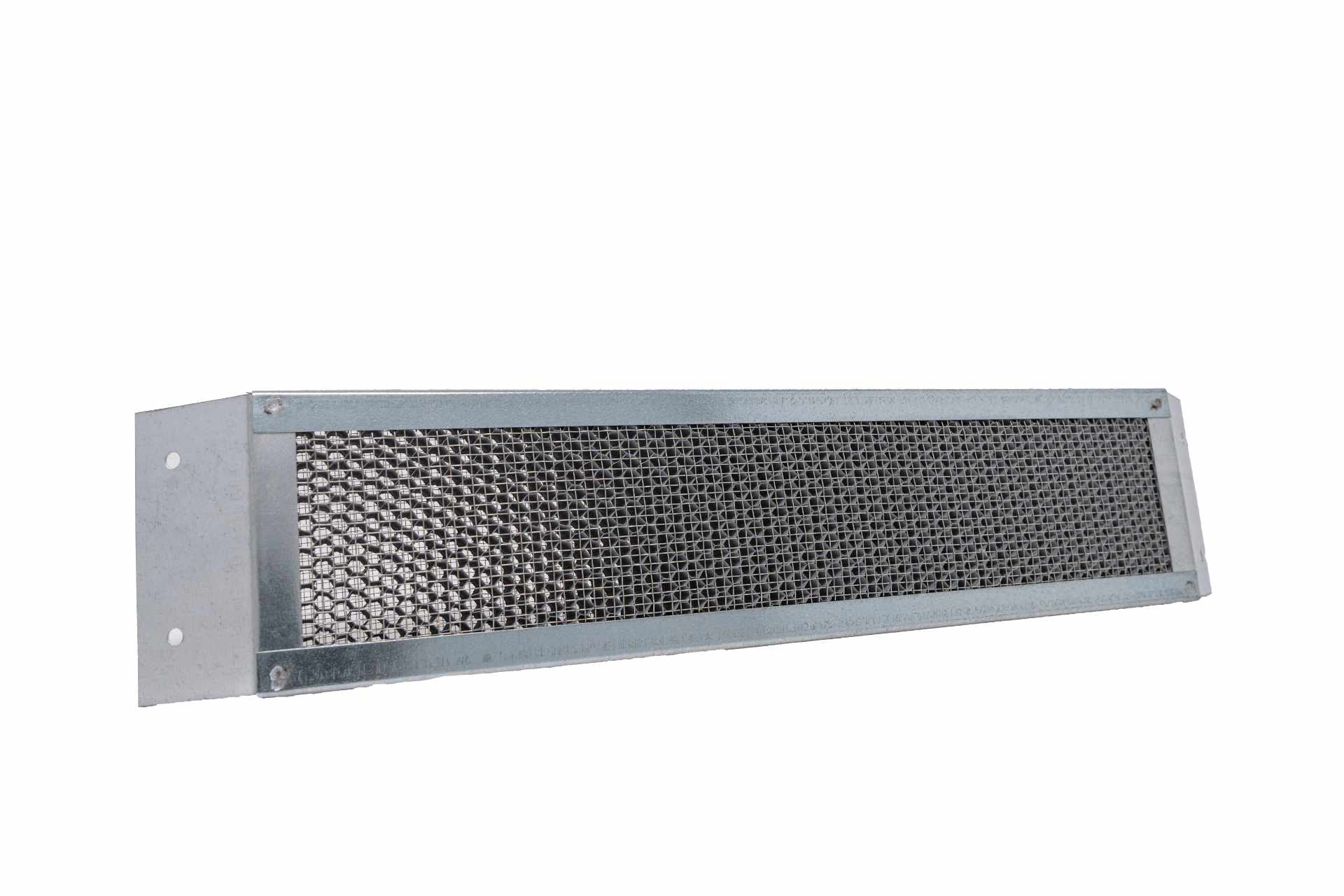

| FSVE3514RT | 3.5" x 14" REVERSE TAB EAVE VENT | Reverse Tab | 24 | 2x4 Rafters - 16" OC |
|

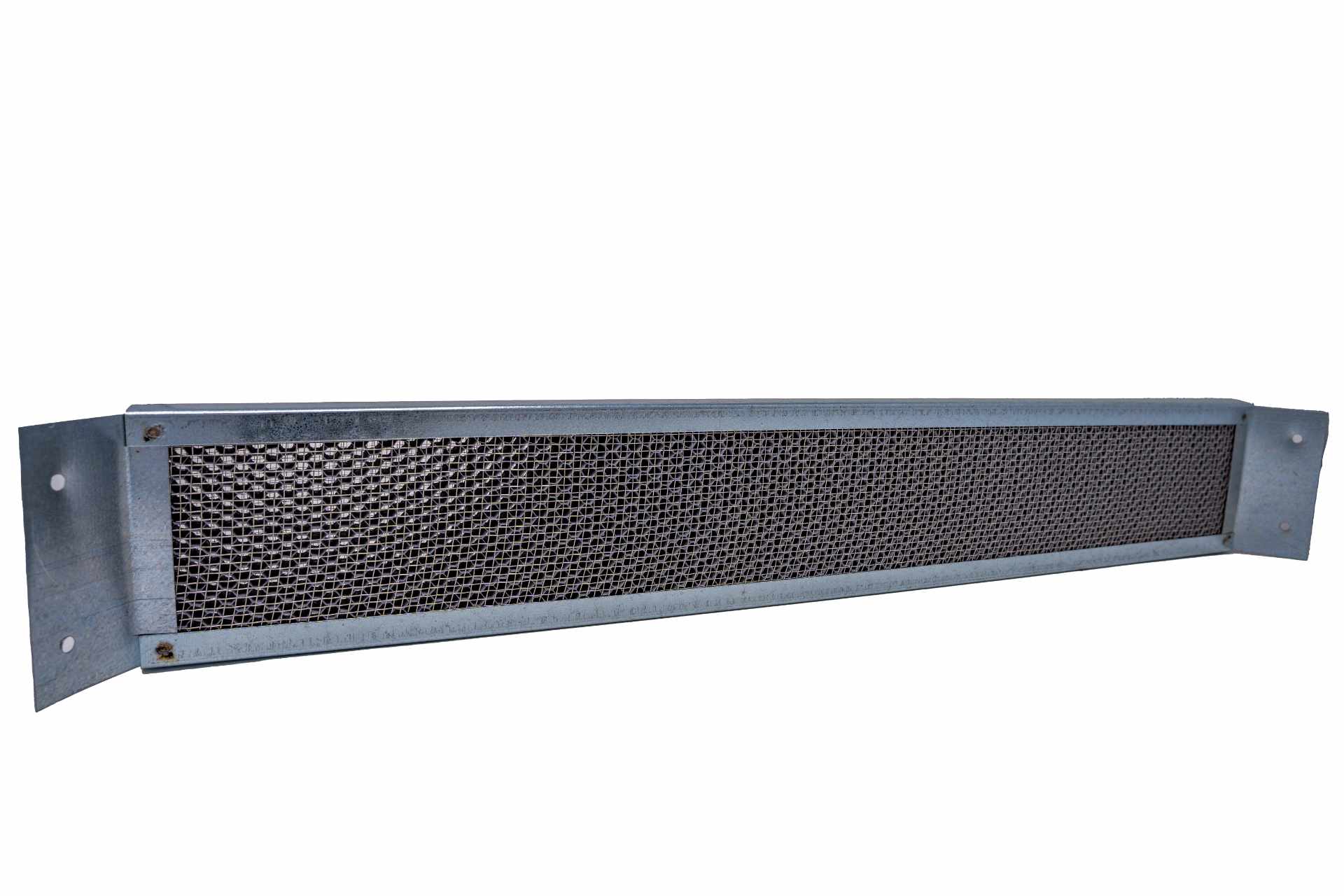

| FSVE3522 | 3.5" x 22" TABBED EAVE VENT | Standard | 41 | 2x4 Rafters - 24" OC |
|

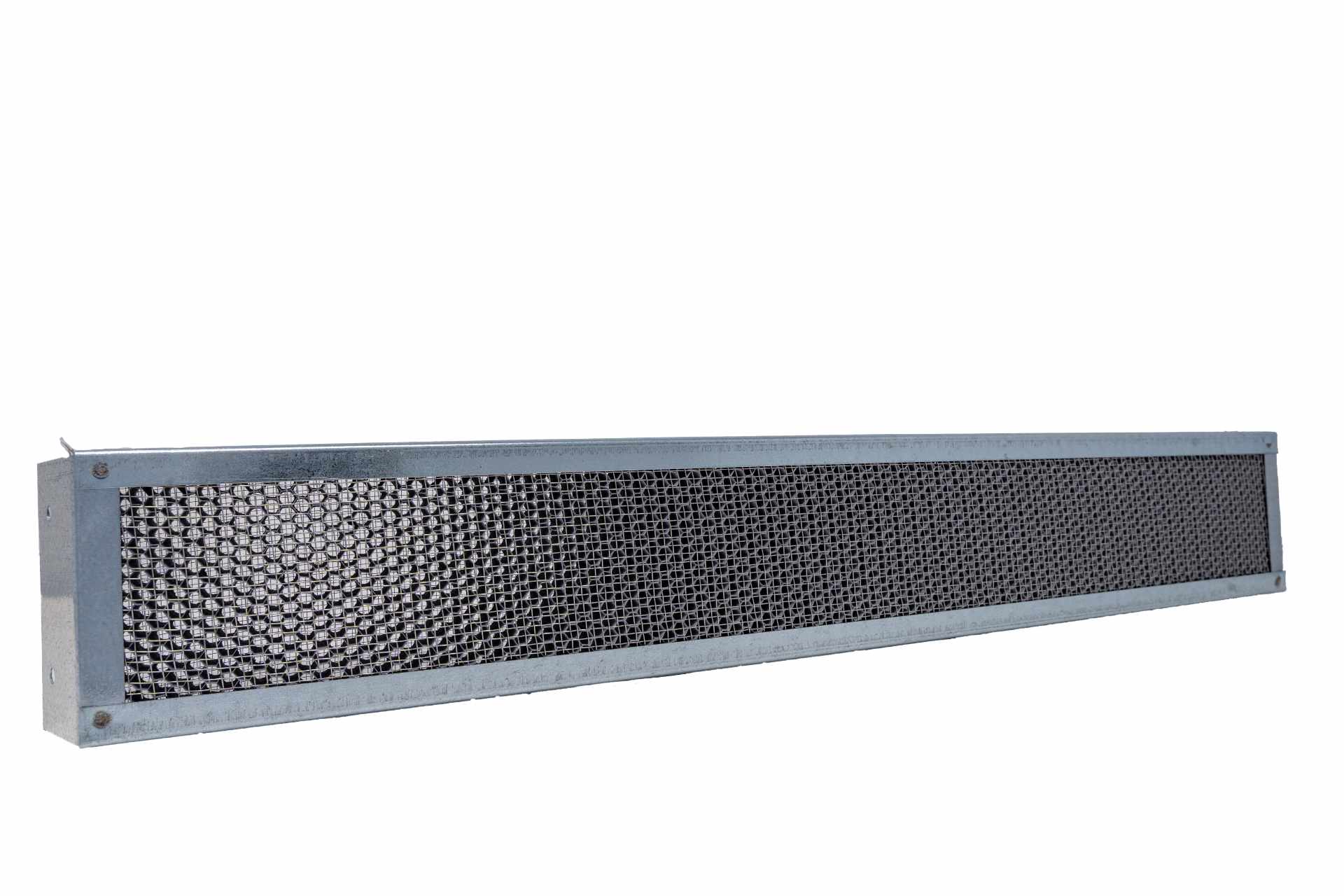

| FSVE3522RT | 3.5" x 22" REVERSE TAB EAVE VENT | Reverse Tab | 41 | 2x4 Rafters - 24" OC |
|

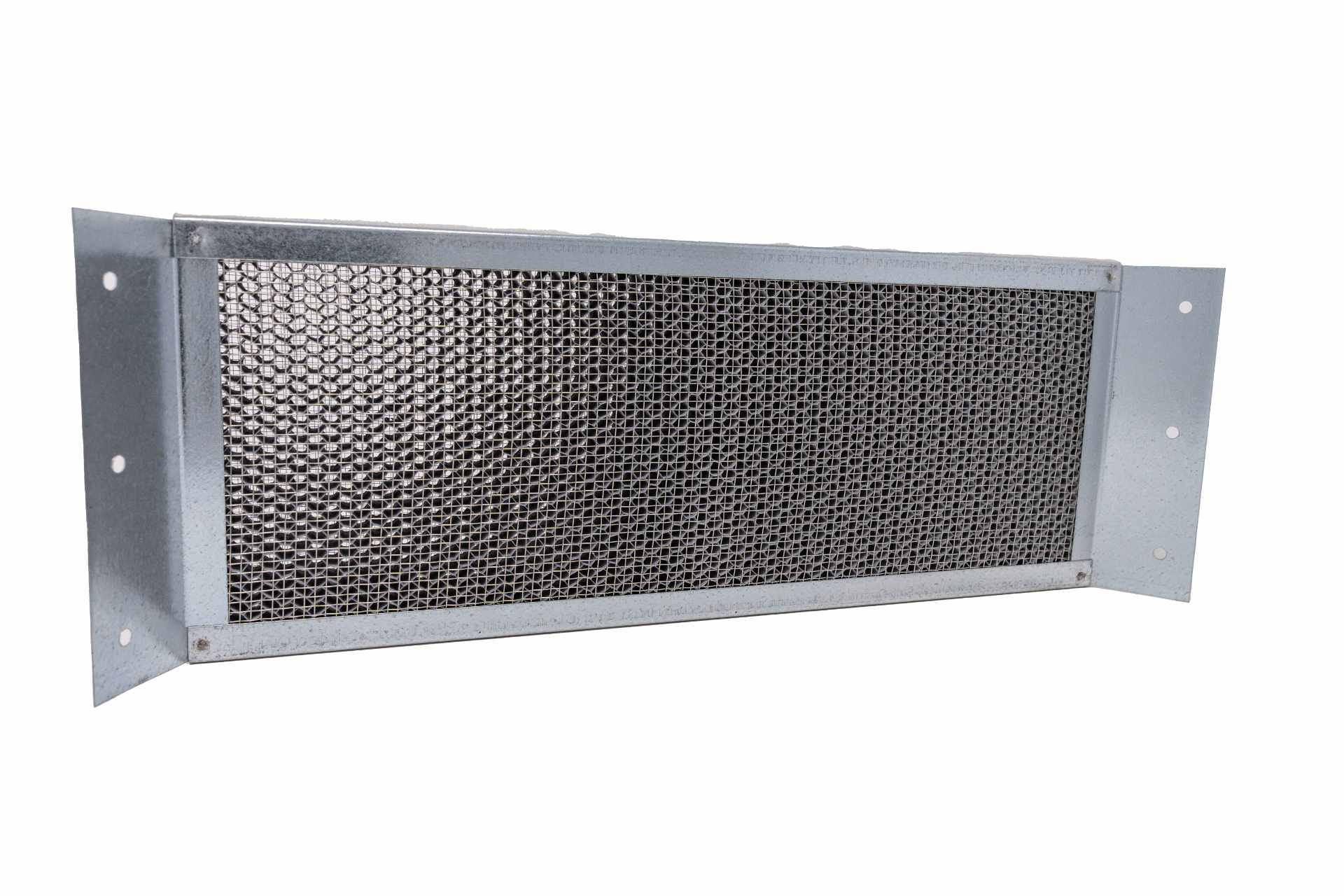

| FSVE5514 | 5.5" x 14" TABBED EAVE VENT | Standard | 44 | 2x6 Rafters - 16" OC |
|

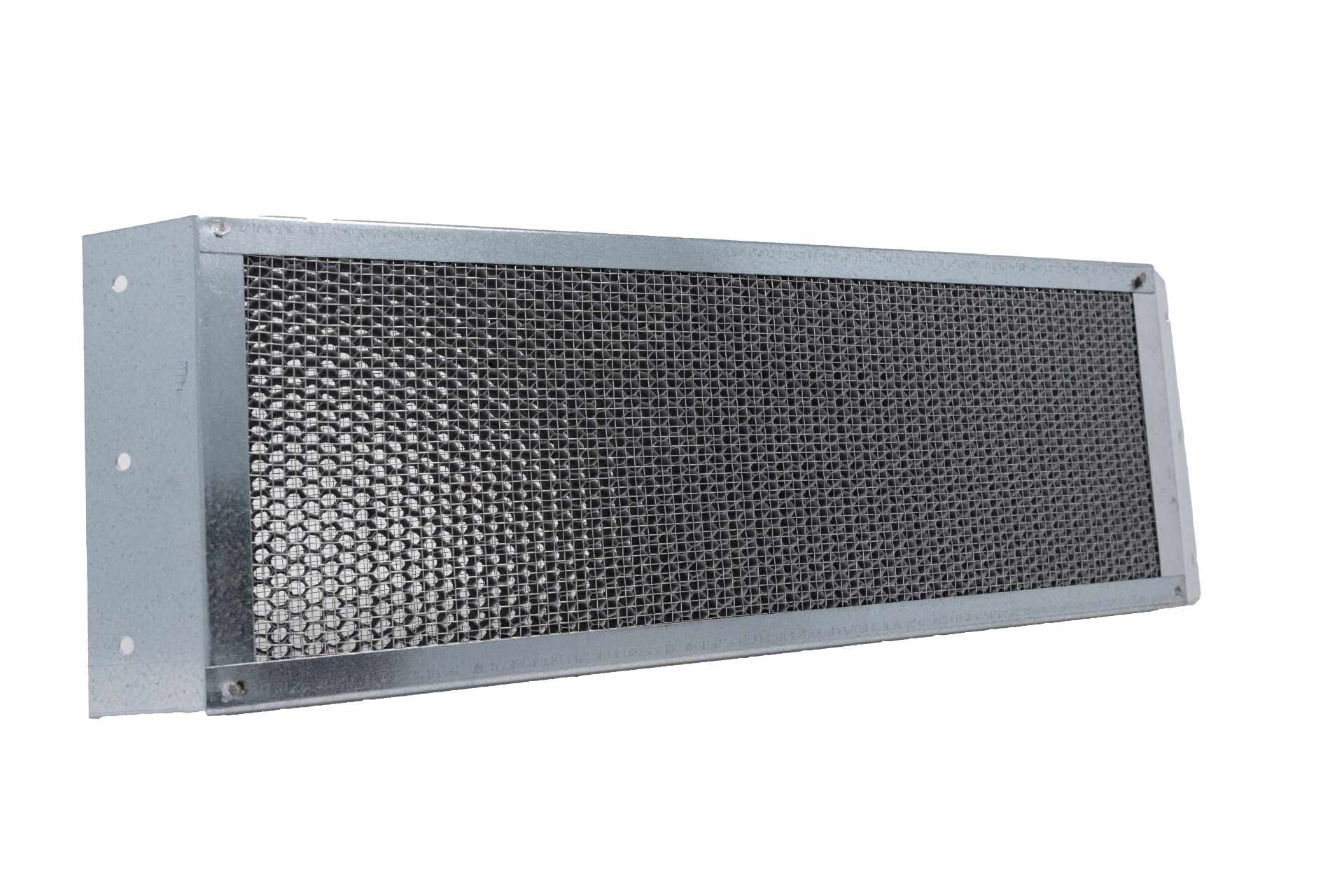

| FSVE5514RT | 5.5" x 14" REVERSE TAB EAVE VENT | Reverse Tab | 44 | 2x6 Rafters - 16" OC |
|

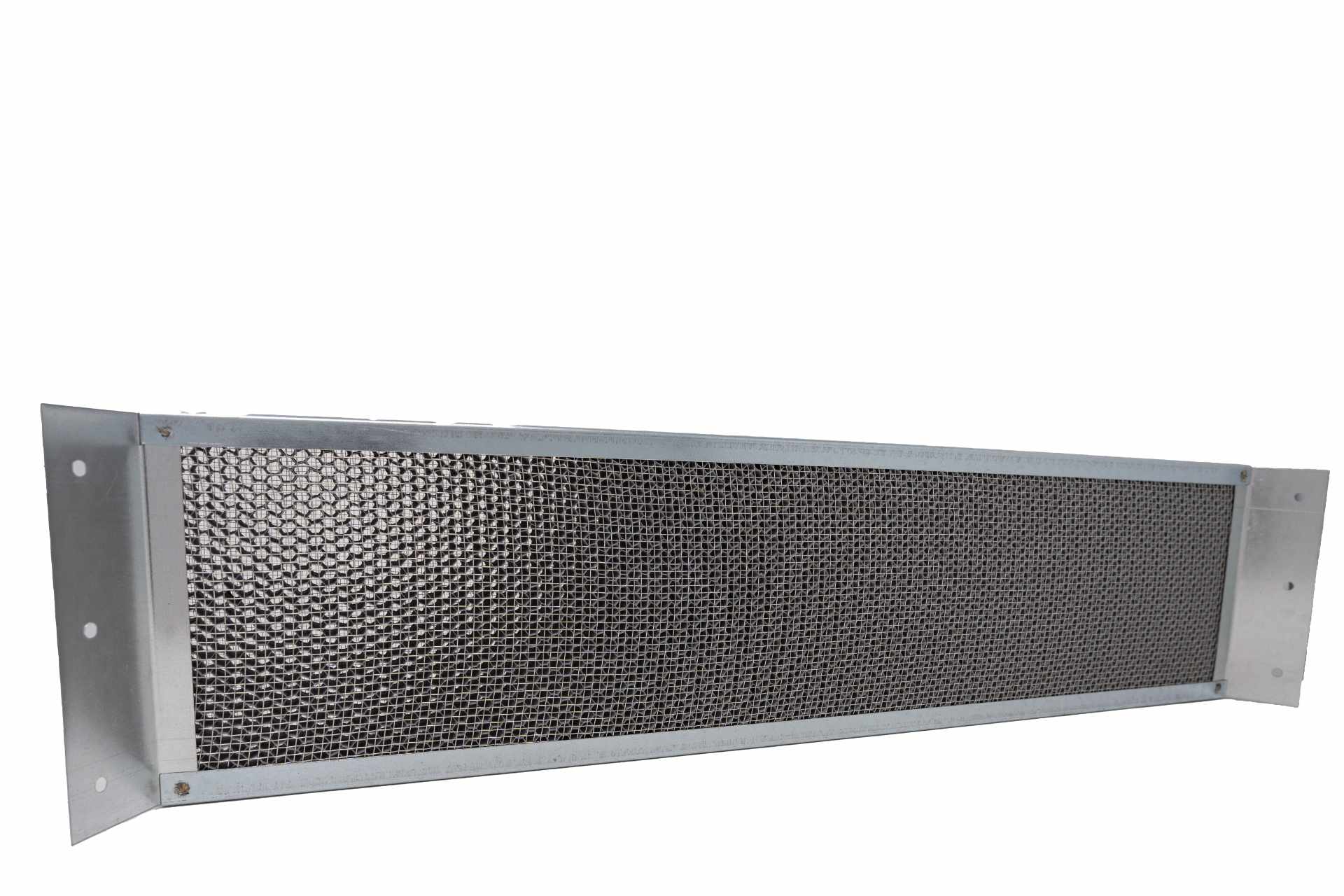

| FSVE5522 | 5.5" x 22" TABBED EAVE VENT | Standard | 75 | 2x6 Rafters - 24" OC |
|

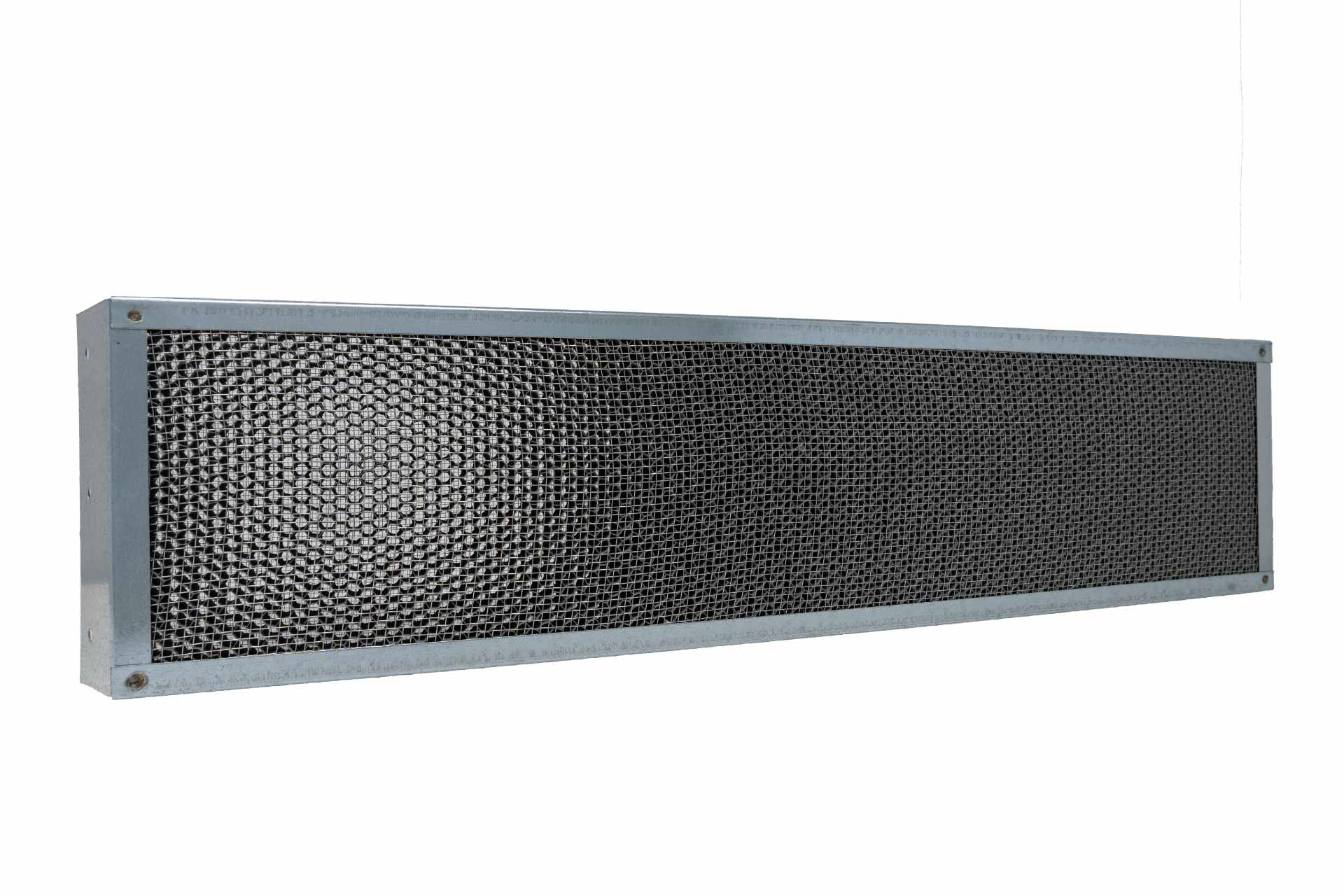

| FSVE5522RT | 5.5" x 22" REVERSE TAB EAVE VENT | Reverse Tab | 75 | 2x6 Rafters - 24" OC |
|

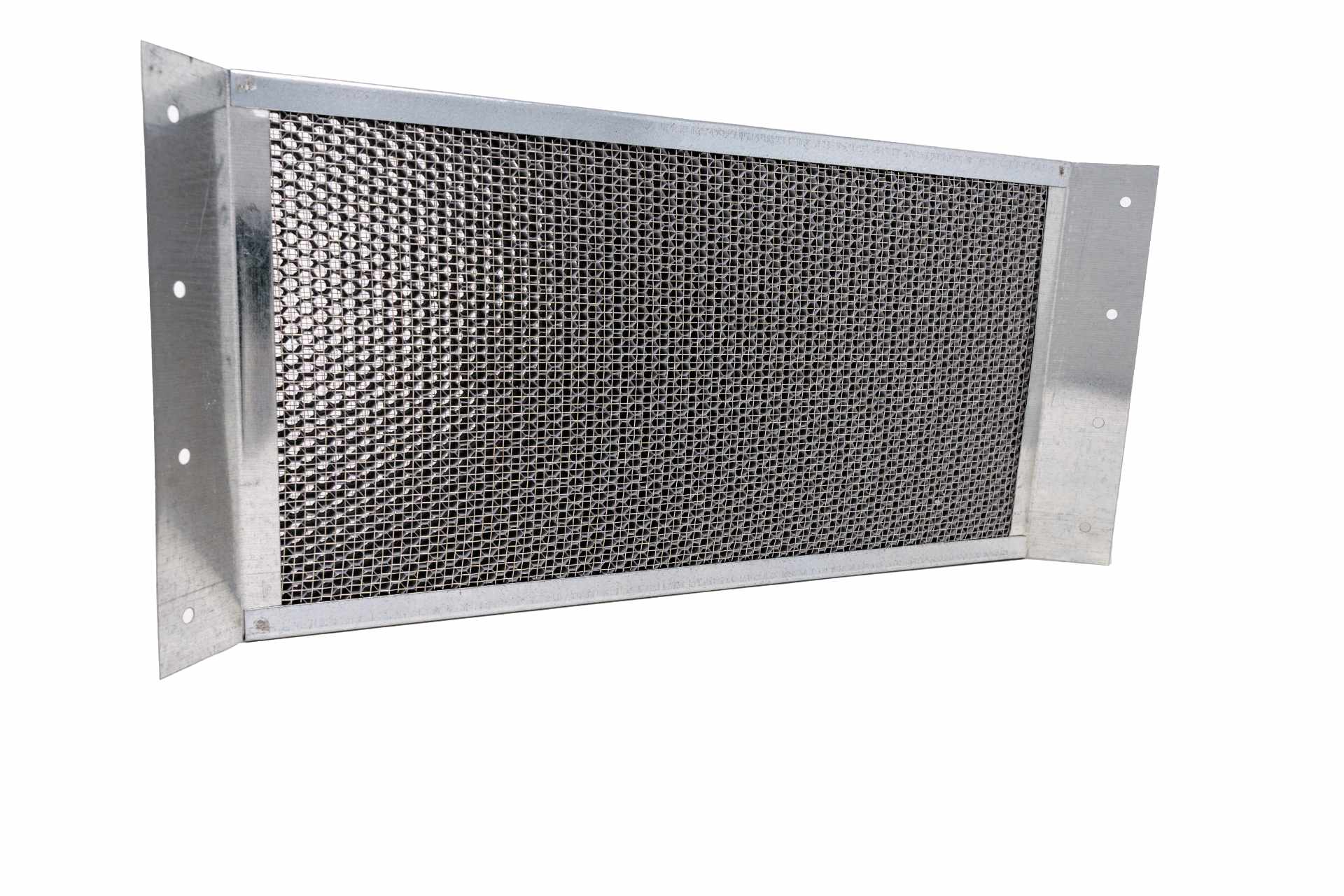

| FSVE7514 | 7.5" x 14" TABBED EAVE VENT | Standard | 75 | 2x8 Rafters - 16" OC |
|

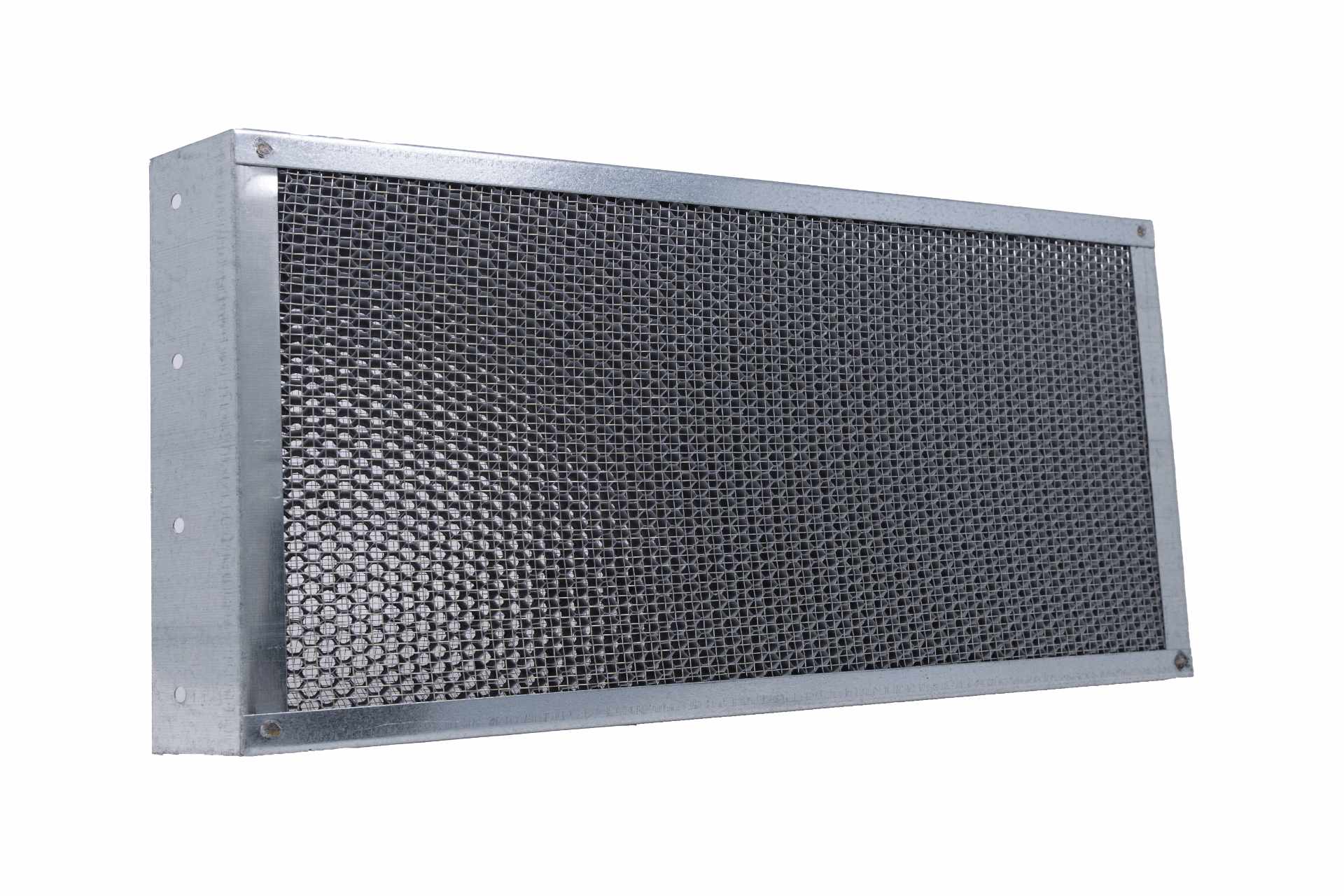

| FSVE7514RT | 7.5" x 14" REVERSE TAB EAVE VENT | Reverse Tab | 75 | 2x8 Rafters - 16" OC |
|

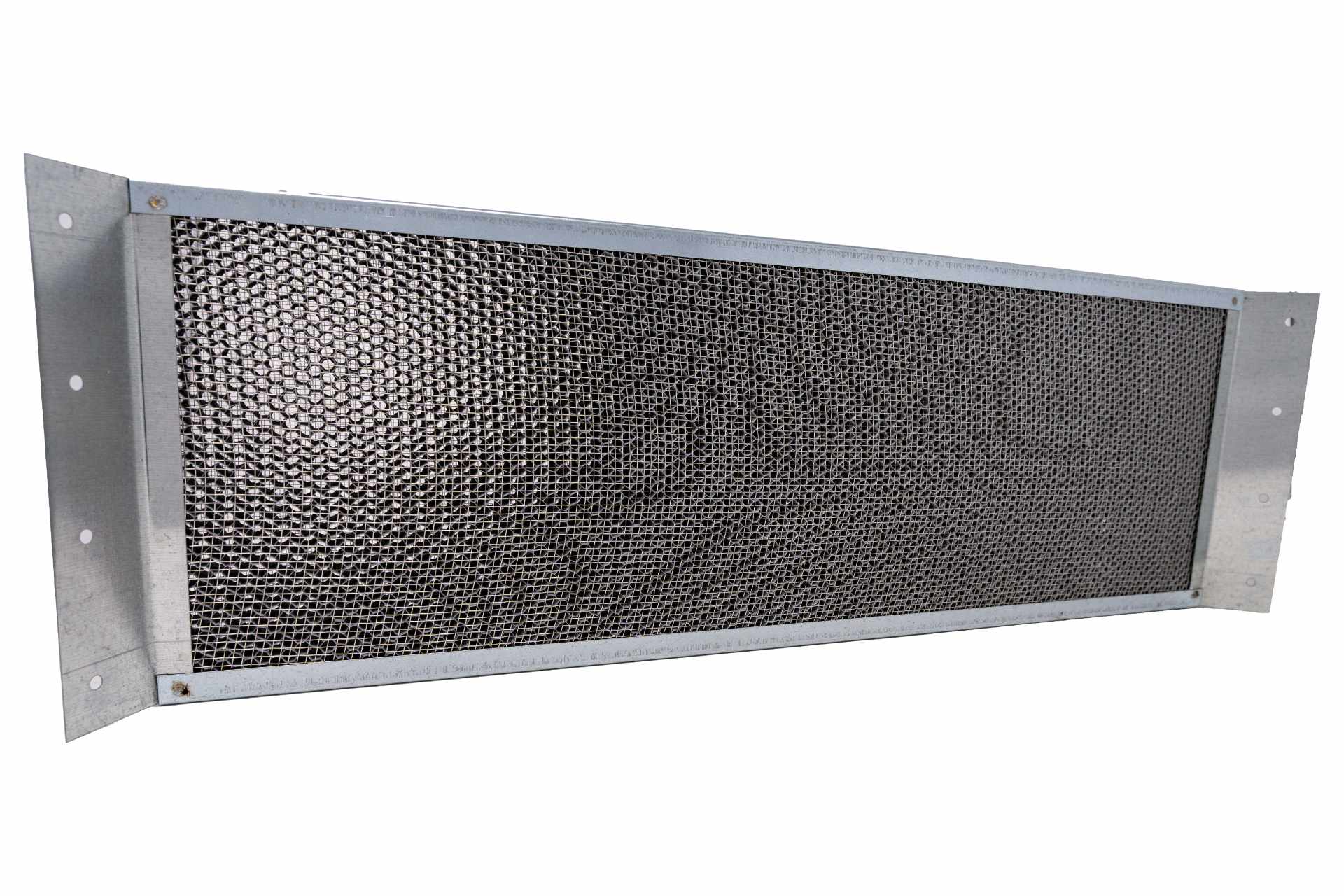

| FSVE7522 | 7.5" x 22" TABBED EAVE VENT | Standard | 119 | 2x8 Rafters - 24" OC |
|

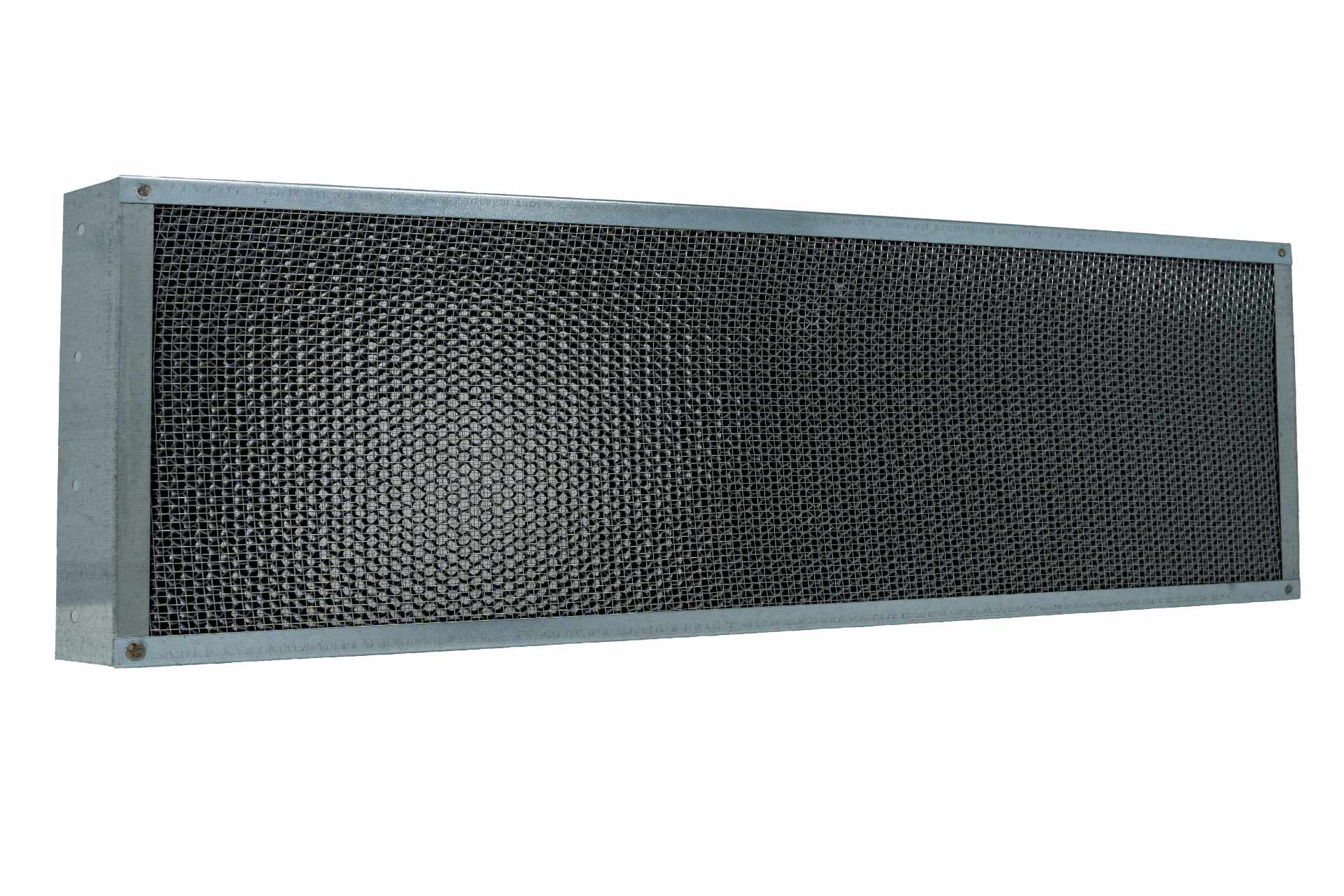

| FSVE7522RT | 7.5" x 22" REVERSE TAB EAVE VENT | Reverse Tab | 119 | 2x8 Rafters - 24" OC |
|
| FSVER1 | 1" ROUND LOUVERED FACE FIRE VENT | Flange Front | 1 | 1 Round Hole |
|
| FSVER1M | 1" ROUND MESH FACE FIRE VENT | Flange Front | 1 | 1 Round Hole |
|
| FSVER15 | 1.5" ROUND LOUVERED FACE FIRE VENT | Flange Front | 1.5 | 1.5 Round Hole |
|
| FSVER15M | 1.5" ROUND MESH FACE FIRE VENT | Flange Front | 1.5 | 1.5 Round Hole |
|

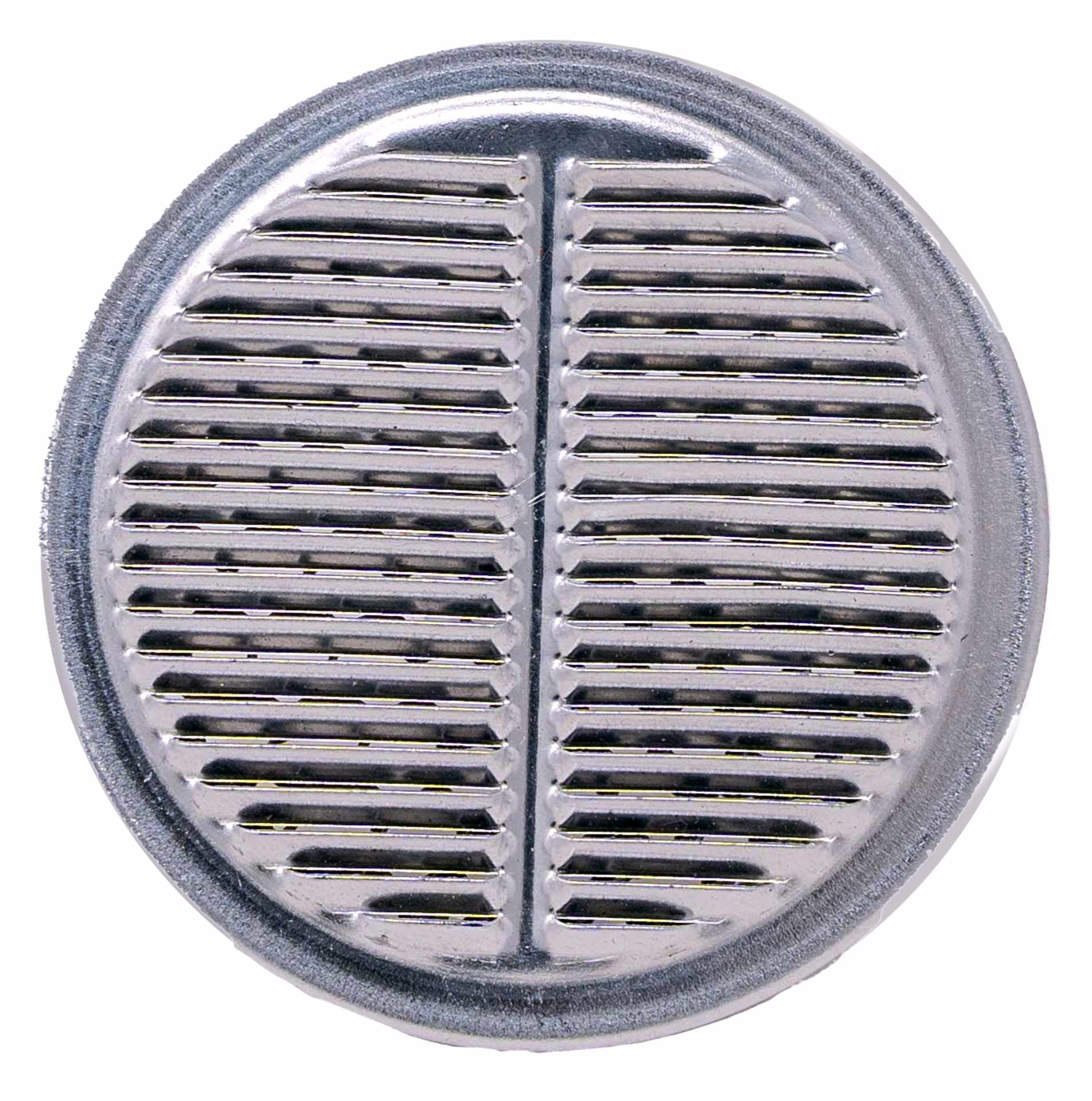

| FSVER2 | 2" ROUND LOUVERED FACE FIRE VENT | Flange Front | 1 | 2 Round Hole |
|

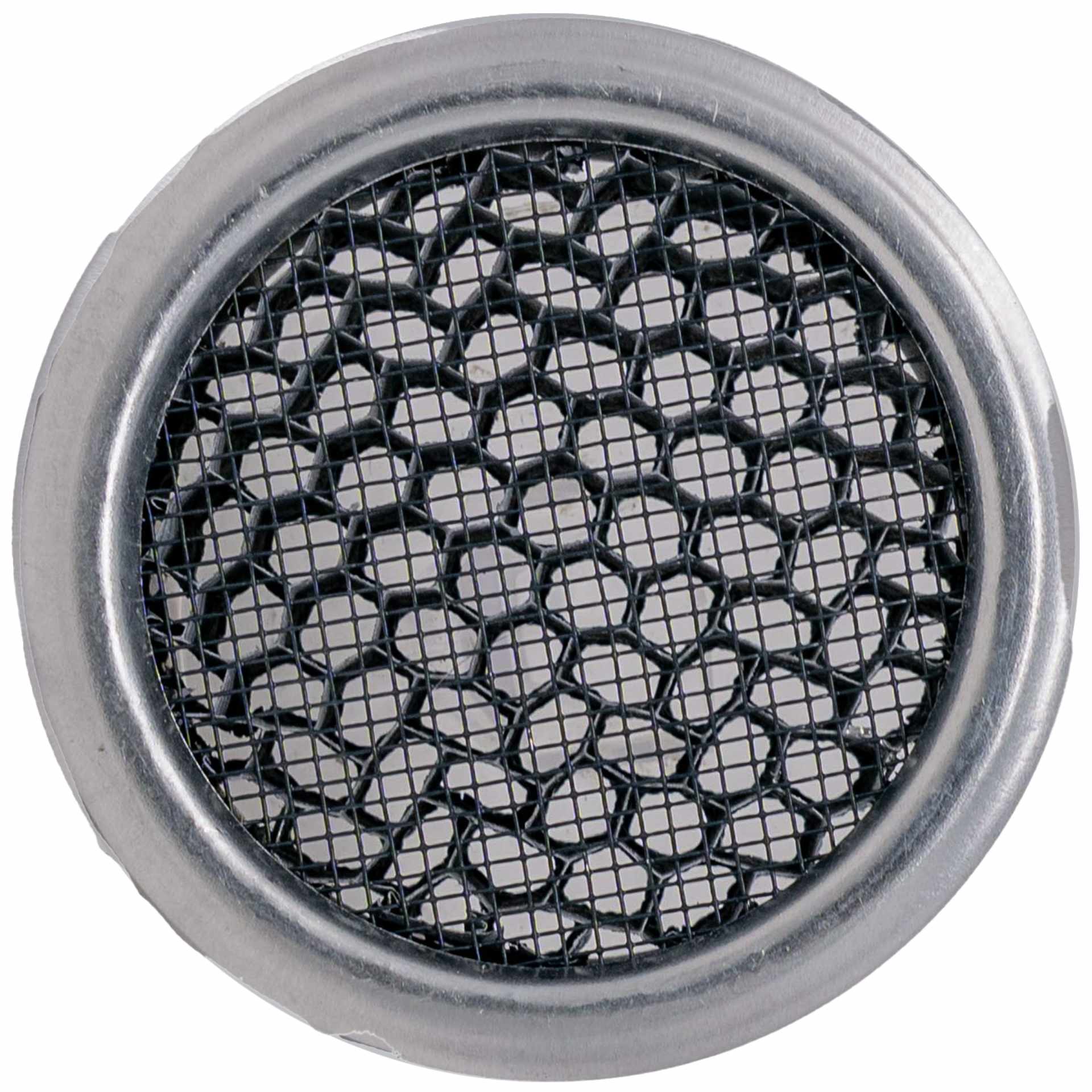

| FSVER2M | 2" ROUND MESH FACE FIRE VENT | Flange Front | 2 | 2 Round Hole |
|
| FSVER3 | 3" ROUND LOUVERED FACE FIRE VENT | Flange Front | 2 | 3 Round Hole |
|

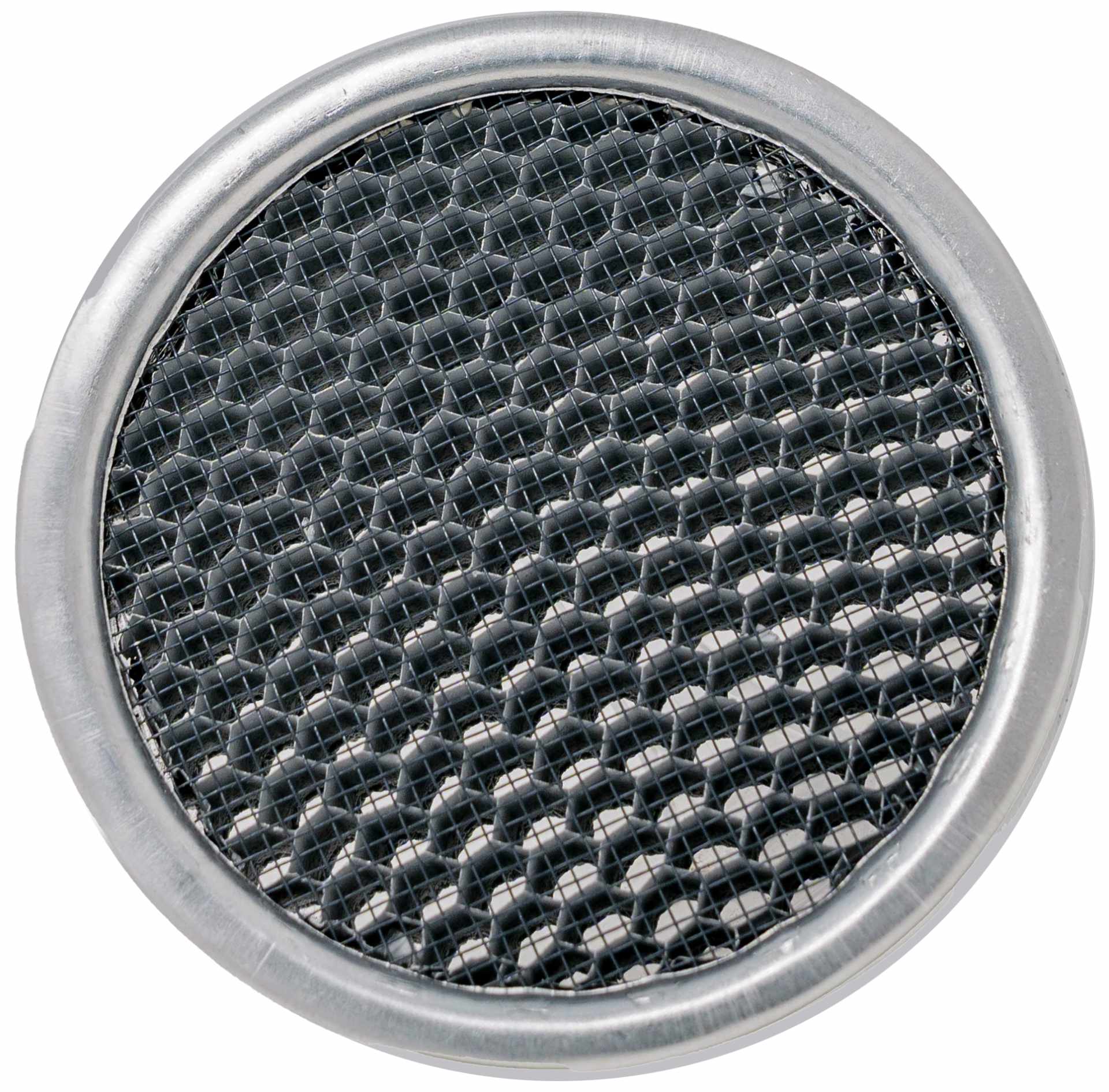

| FSVER3M | 3" ROUND MESH FACE FIRE VENT | Flange Front | 4 | 3 Round Hole |
|

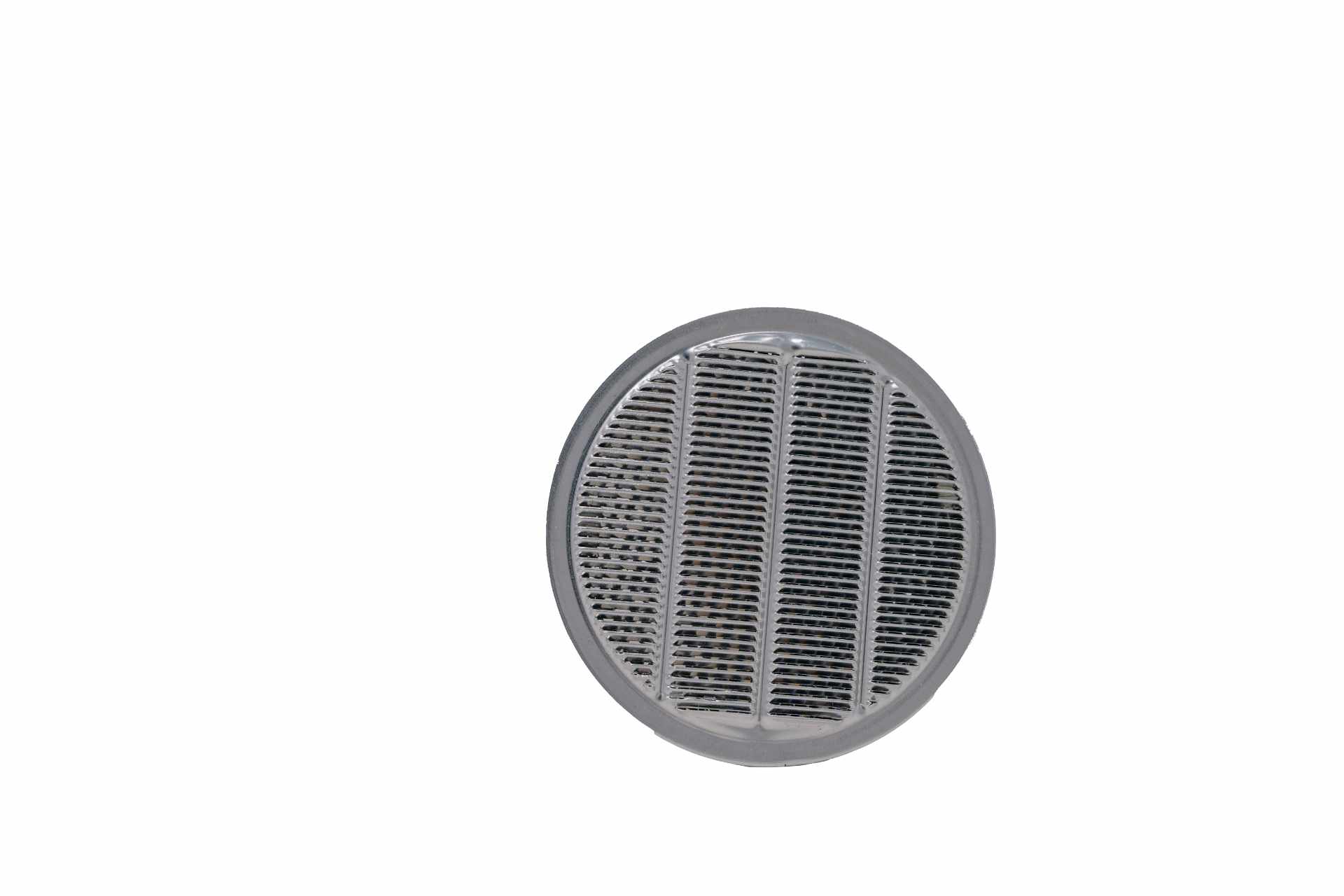

| FSVER4 | 4" ROUND LOUVERED FACE FIRE VENT | Flange Front | 4 | 4 Round Hole |
|

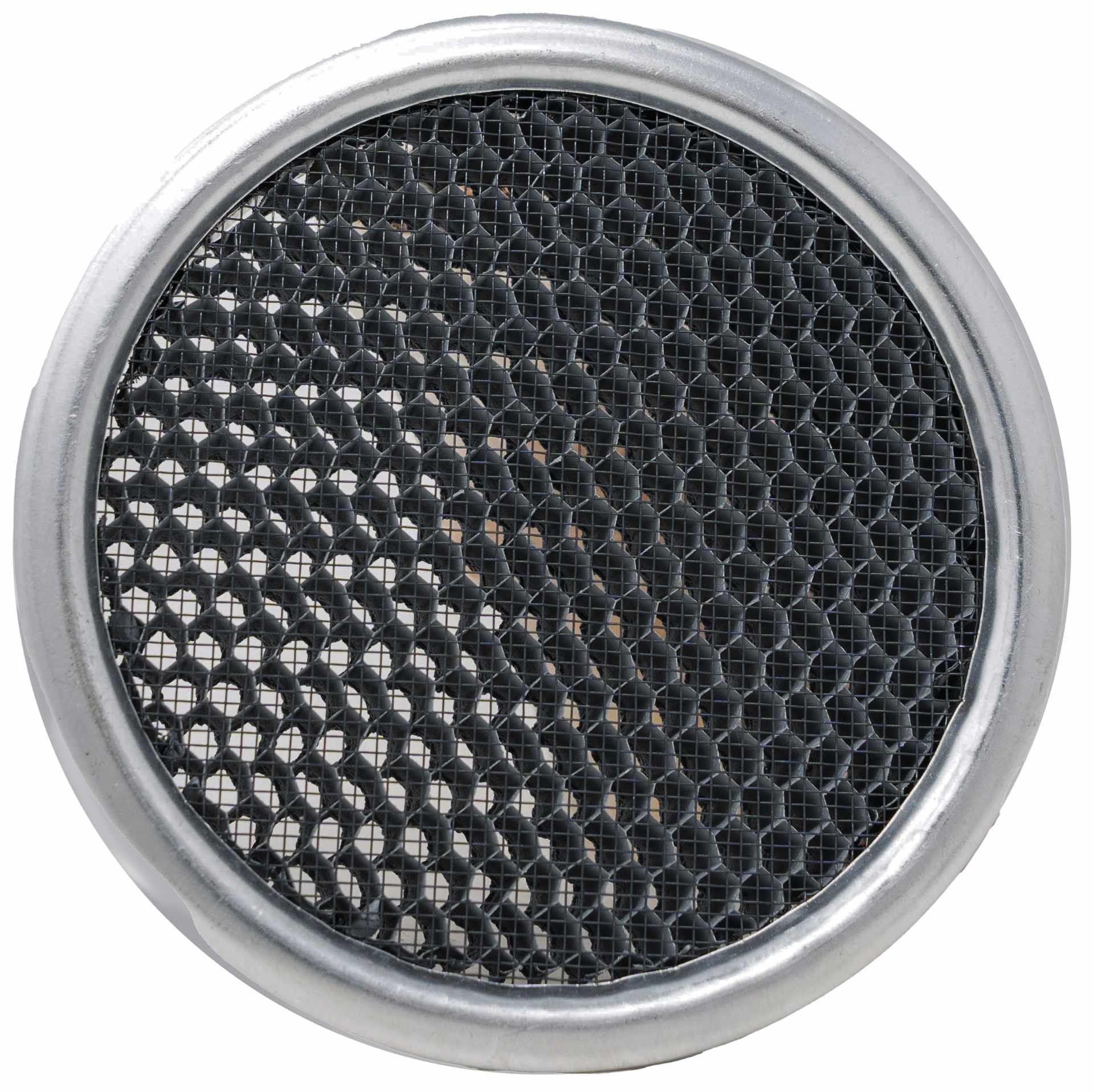

| FSVER4M | 4" ROUND MESH FACE FIRE VENT | Flange Front | 8 | 4 Round Hole |
|
